Han Solo DL-44 Holster & Gun Belt Leather Pattern | Digital PDF SVG DXF Template

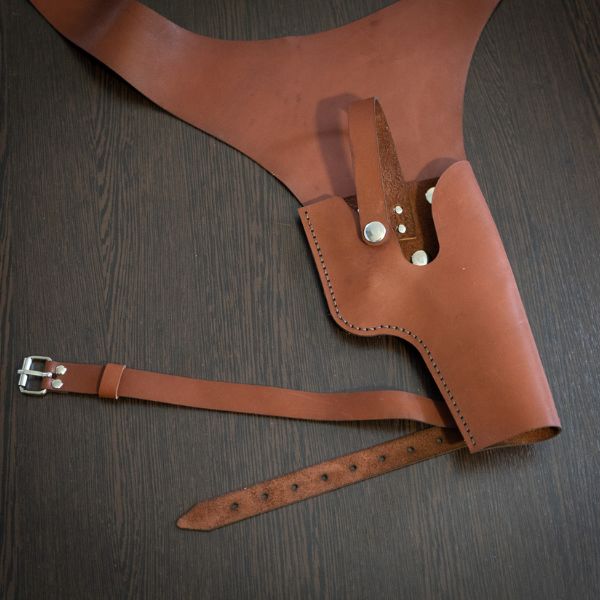

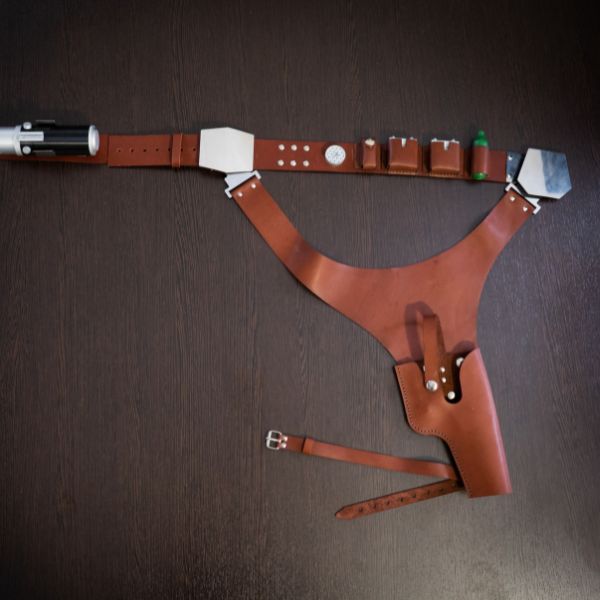

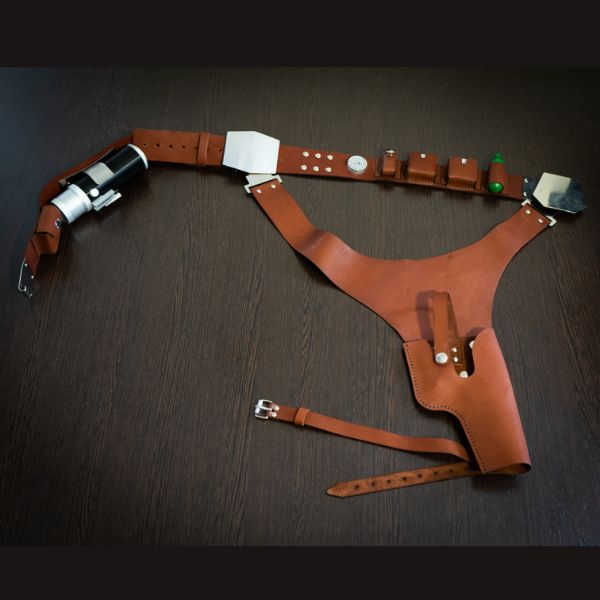

Build the Iconic Han Solo DL-44 Holster & Gun Belt

Create your own Han Solo-inspired DL-44 leather holster and gun belt with this detailed digital leathercraft pattern. The design is based on the iconic gun belt and holster style seen in Star Wars: Episode IV – A New Hope.

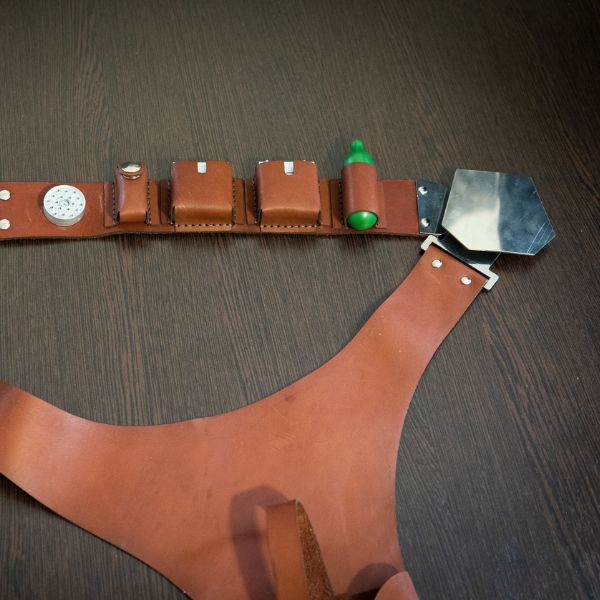

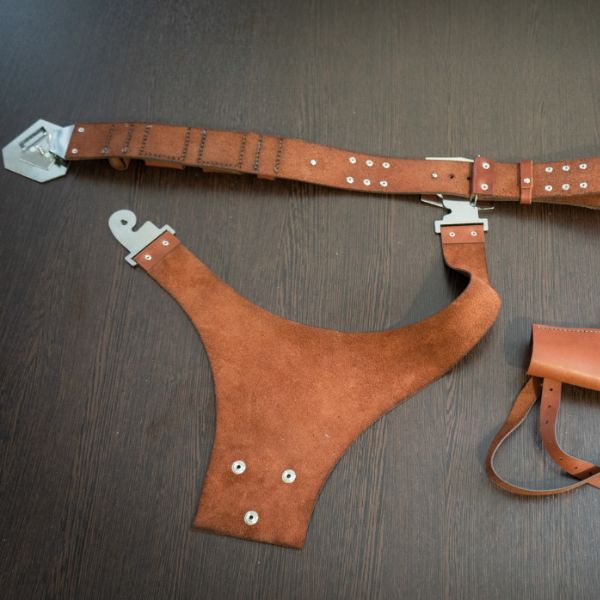

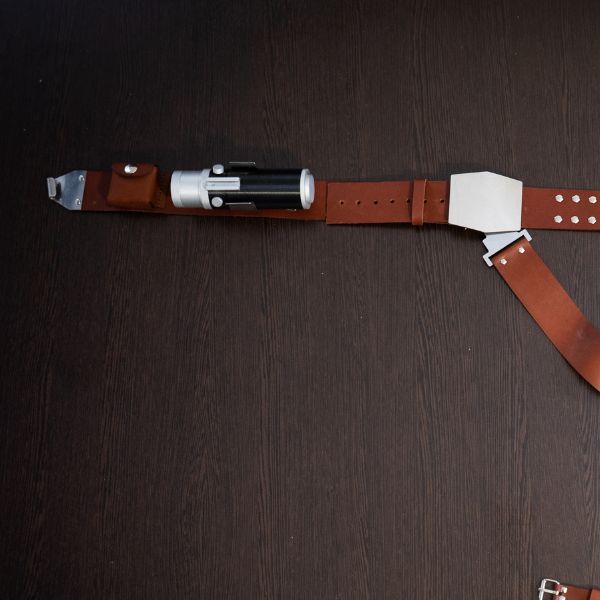

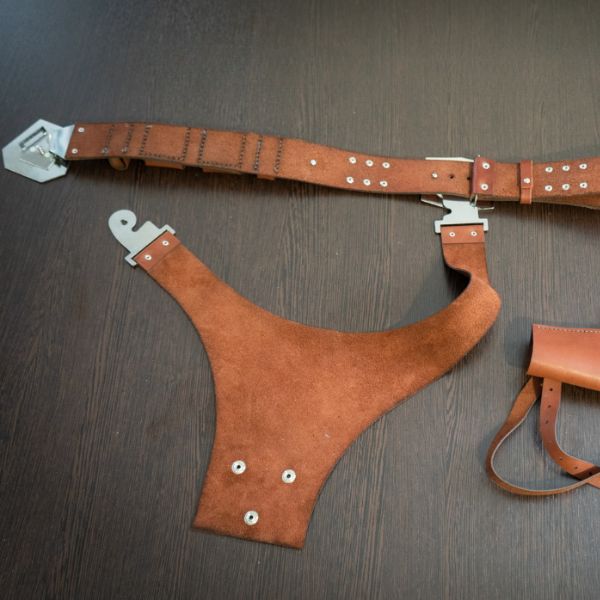

This pattern set includes the main leather components required to build the complete rig: holster, gun belt, leg strap, accessory holders, belt details, and connecting straps.

The package also includes templates for the metal components, allowing you to reproduce the distinctive metal details of the original-style belt and holster system.

All patterns are provided at full 1:1 scale and can be used for traditional hand cutting or with laser/CNC equipment.

IMPORTANT: This is a digital download only. No physical holster, belt, leather, blaster, metal parts, rivets, screws, buckles, or other hardware will be shipped.

---

What’s Included

• Printable 1:1 PDF Pattern – prepared for printing on standard A4 paper at actual size.
• SVG Vector Files – suitable for laser cutters and vector editing software.
• DXF Files – suitable for CAD, CNC, and laser-cutting workflows.
• Leather Part Templates – templates for the holster, gun belt, leg strap, accessory holders, and connecting components.
• Metal Part Templates – patterns for fabricating the decorative and structural metal components used throughout the rig.

---

Required Materials & Hardware

Leather, hardware, and metal parts are not included. To complete the project, you will need:

Hardware

• 3 × holster screws
• 12 × single-cap rivets – 9 mm
• 17 × single-cap rivets – 6 mm
• 1 × M3 × 10 mm countersunk-head screw
• 1 × M3 nut
• 1 × M3 washer
• 6 × snap fasteners – 15 mm
• 1 × buckle – 20 mm

Additional Materials

• Suitable leather
• Waxed thread for leather stitching
• Leather adhesive
• Material for making the metal components

---

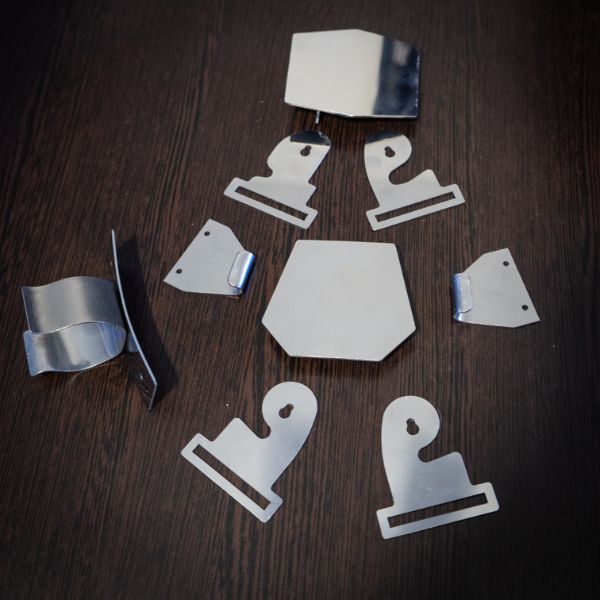

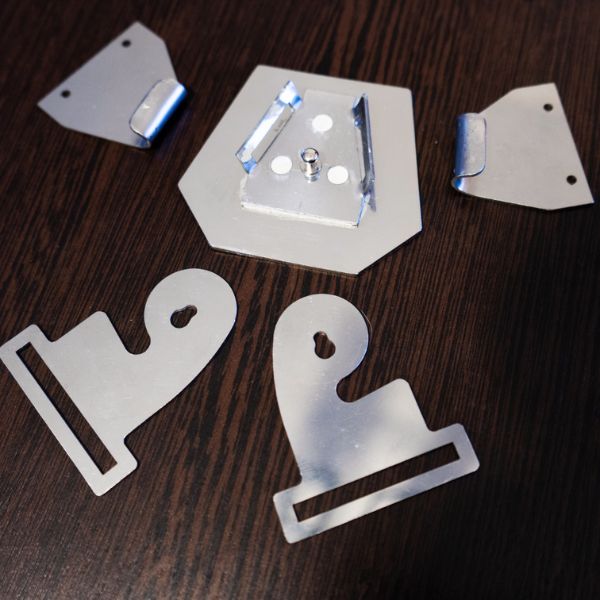

Metal Parts

The download includes full-size templates for the metal components used on the belt and holster assembly. These templates can be transferred to suitable sheet metal and cut using your preferred fabrication method.

The metal parts shown in the finished example are not included as physical items.

---

DL-44 Compatibility

The holster pattern is designed around a standard Han Solo DL-44 blaster profile. Please note that dimensions may vary between different replica manufacturers, 3D models, and custom-built props.

We strongly recommend printing the relevant holster pieces on paper first and checking the fit with your specific DL-44 replica before cutting the final leather.

---

Printing Settings

To maintain the correct dimensions, print the PDF using the following settings:

Paper Size	A4
Scale	100% / Actual Size
Pattern Scale	1:1
Fit to Page	OFF
Automatic Scaling	OFF

Do not use “Fit to Page”, “Shrink Oversized Pages”, or any automatic scaling option.

After printing, check the reference dimensions included in the pattern before transferring the templates to leather.

---

Perfect For

• Han Solo cosplay
• DL-44 blaster cosplay rigs
• Star Wars-inspired costume builds
• Leathercraft projects
• Prop making
• Convention costumes
• Display replicas
• DIY costume projects

---

Digital Product Notice

This listing is for digital files only.

No physical leather holster, gun belt, DL-44 blaster, metal components, hardware, or finished costume accessories are included.

After purchase, you will receive access to the digital pattern files so you can create the holster and belt yourself using your preferred materials and fabrication methods.

---

File Formats

• PDF – printable 1:1 templates
• SVG – vector files for laser cutting and editing
• DXF – CAD and CNC-compatible vector files

For personal DIY use. Redistribution, resale, sharing, or uploading of the digital pattern files is not permitted.
